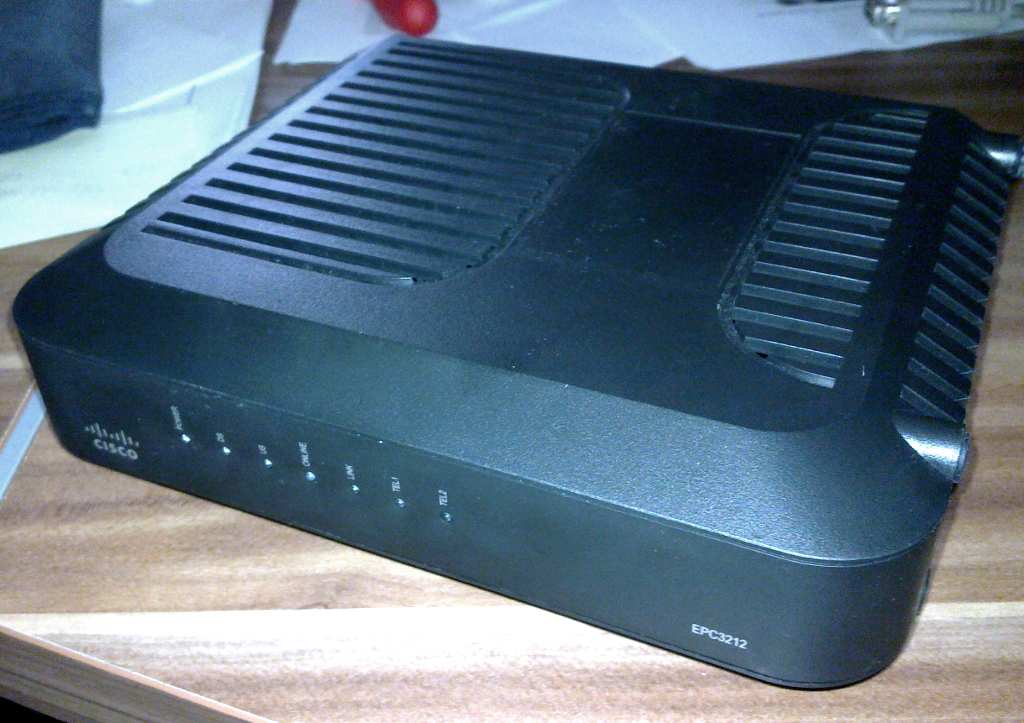

Cisco EPC3212 DOCSIS 3.0 Cable Modem

2014-06-21:

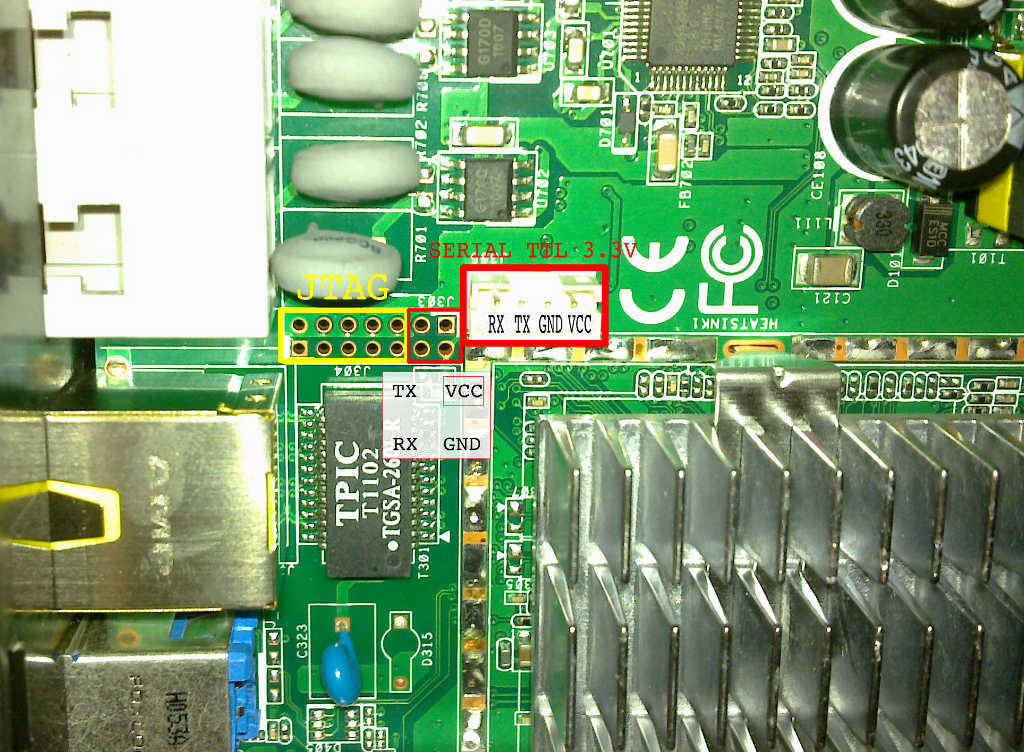

- Image cisco_epc_3212-03.jpg pinout description was incorrect. MaCXyLo thanks for report the issue.

2011-10-09:
An generic LZMA file extractor can be found here. (linux/i386 .bin)
$ ./conv-ecos_lzma.bin e3200-ESIP-16-v302r125531-110220.bin outfile.lzma
LZMA signature patcher by ripp <ripp@csmn.de> for
     Cisco/Motorola eCos based docsis modems firmwares.

Found LZMA Header at byte offset: 0x000274e4
Add LZMA Mot.Trailer to destination from byte offset: 0x00000005 to 0x0000000e
$ lzma -c -k -d outfile.lzma > outfile.raw
lzma: Decoder error
The decoder error can be ignored because of the hacked lzma header.
Happy Hacking

2011-08-07:
- For Serialaccess use 115k2 8n1.
- Flashdumps/writes via jtag
- More soon ;-)
